Pipe Fitting Stub End

• Application
• other, Chemical, Petrochemical, Oil & Gas, Marine

• Bend Radius
• As per standard

• Color
• Metallic Silver

• Connection
• Other, Buttweld

• Connection Type
• Buttweld

• Diameter
• 15 mm - 600 mm

• Flexibility
• Rigid

• Length
• As per requirement (up to 600 mm)

• Material
• Other , Monel

• Material Grade
• Monel 400, Monel K500

• Outer Diameter
• 15 mm - 600 mm

• Product Type
• Other, Stub End

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Metal-To-Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM B366 / ASME SB366

• Surface Treatment
• Other, Polished

• Temperature Range
• -29C to +650C

• Tensile Strength
• 550 MPa min

• Thickness
• 3 mm - 12 mm

• Thread Type
• Plain

• Tolerance
• 0.1 mm

• Usage
• Fittings for Piping/Plumbing

• Yield Strength
• 170 MPa min

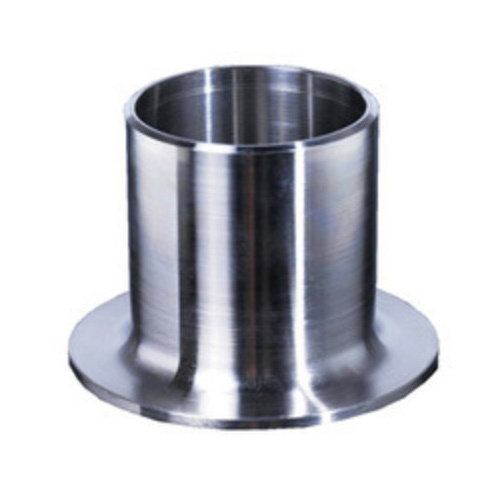

• Application
• other, Chemical, Oil & Gas, Marine, Nuclear Industries

• Bend Radius
• As per standard

• Color
• Silver / Metallic

• Connection
• Other, Buttweld

• Connection Type
• Welded

• Diameter
• As per requirement

• Flexibility
• Rigid

• Length
• 50 mm to 600 mm

• Material
• Other , Inconel

• Material Grade
• Inconel 600 / 625 / 800 / 825

• Outer Diameter
• 1/2 inch to 16 inch

• Product Type
• Other, Stub End

• Rated Pressure
• Up to 3500 psi

• Sealing Type
• Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM B366 / ASME SB366

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to +870C

• Tensile Strength
• 550 MPa

• Thickness
• 3 mm to 20 mm

• Tolerance
• 0.5 mm

• Usage
• Pipeline, Petrochemical, Power Plant

• Yield Strength
• 240 MPa

• Application
• other, Chemical processing, Petrochemical, Power, Gas, Pharmaceutical, Food industries

• Bend Radius
• As per specification

• Color
• Metallic Grey

• Connection
• Other, Butt Weld

• Connection Type
• Butt Weld End

• Diameter
• 1/2 to 48

• Flexibility
• Rigid

• Length
• Upto 6 meters / Custom cut

• Material
• Other , Hastelloy (Nickel-Molybdenum Alloy)

• Material Grade
• Hastelloy C276, C22, B2, B3, X, G30, C4

• Outer Diameter
• 1/2 (12.7 mm) to 48 (1219 mm)

• Product Type
• Other, Hastelloy Stube End

• Rated Pressure
• Class 150 to 2500

• Sealing Type
• Metal to Metal (Welded)

• Section Shape
• Round

• Shape
• Other, Tube End (Stub End)

• Standard
• Other, ASTM B366 / ASME SB366

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -196C to +600C

• Tensile Strength
• 690 MPa (min)

• Thickness
• 1 mm to 30 mm

• Thread Type
• Not Applicable (Butt Weld)

• Tolerance
• 0.05 mm

• Usage
• High Corrosion Resistance Fittings

• Yield Strength
• 283 MPa (min)

• Application
• other, Oil & Gas, Power Plants, Petrochemical, Chemical, and Mechanical Industries

• Bend Radius
• As per standard or customized

• Coating Type
• Optional Anti-rust Oil / Black Paint

• Color
• Metallic Grey / Black

• Connection
• Other, Welded

• Connection Type
• Buttweld

• Diameter
• 1/2 inch to 24 inch

• Flexibility
• Rigid

• Length
• Customizable / Specified as per requirement

• Material
• Other , Alloy Steel

• Material Grade
• Alloy Steel Grades: WP1, WP5, WP9, WP11, WP22, WP91, etc.

• Outer Diameter
• 1/2 inch to 24 inch (12.7 mm to 610 mm)

• Product Type
• Other, Stub End

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal-to-metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A234 / ASME SA234

• Surface Treatment
• Other, Shot Blasted / Black Painted

• Temperature Range
• -20C to 600C

• Tensile Strength
• 415 MPa min (varies by grade)

• Thickness
• Schedule 10 to Schedule 160 (STD, XS, XXS)

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting / Pipe Joining

• Yield Strength
• 205 MPa min (varies by grade)

• Application
• other, Petrochemical, Oil and Gas, Power Plants, Chemical Industries

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• As per specification

• Flexibility
• Rigid

• Length
• Custom lengths up to 6 m

• Material
• Other , Duplex Steel

• Material Grade
• UNS S31803, S32205 (Duplex 2205)

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, Stub End

• Rated Pressure
• Class 150 to Class 2500

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASTM A815, ASME SA815

• Surface Treatment
• Other, Pickled, Polished

• Temperature Range
• -50C to 300C

• Tensile Strength
• Min 620 MPa

• Thickness
• Schedule 10s to Schedule XXS

• Tolerance
• 0.5 mm

• Usage
• Pipe Fittings

• Yield Strength
• Min 450 MPa

• Application
• other, Chemical, Oil & Gas, Petrochemical, Food, Pharmaceutical Industries

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 15 mm to 600 mm

• Flexibility
• Rigid

• Length
• Custom / Standard (Short & Long pattern)

• Material
• Stainless Steel

• Material Grade
• SS304, SS304L, SS316, SS316L, SS321, SS347, Duplex and Super Duplex

• Outer Diameter
• 1/2 to 24 (15 mm to 600 mm)

• Product Type
• Other, SS Stub End

• Rated Pressure
• PN6 to PN64/Class 150 to Class 600

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Cylindrical

• Shape
• Round

• Standard
• Other, ASME/ANSI B16.9, MSS SP-43

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -20C to 800C

• Tensile Strength
• 515 MPa min (for SS304)

• Thickness
• 2 mm to 40 mm

• Tolerance
• 0.25 mm

• Usage
• Pipeline Fitting

• Yield Strength
• 205 MPa min (for SS304)

• Application
• other, Chemical, Petrochemical, Food Processing, Oil & Gas, Water Treatment

• Coating Type
• No Additional Coating

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 1/2 to 48

• Flexibility
• Rigid

• Length
• Custom/Standard (Short/Long) Stub End lengths

• Material
• Stainless Steel

• Material Grade
• 304, 304L, 316, 316L, 321, 347, etc.

• Outer Diameter
• 1/2 to 48 (12.7 mm to 1219 mm)

• Product Type
• Other, Stub End

• Rated Pressure
• Class 150 to Class 2500

• Sealing Type
• Butt Welded Joint

• Section Shape
• Other, Cylinder

• Shape
• Round

• Standard
• Other, ASTM A403, ANSI B16.9/B16.28

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to +600C

• Tensile Strength
• 515 MPa min (for SS316)

• Thickness
• Sch10 to Sch160 (as per request)

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting/Flanged Piping Systems

• Yield Strength
• 205 MPa min (for SS316)

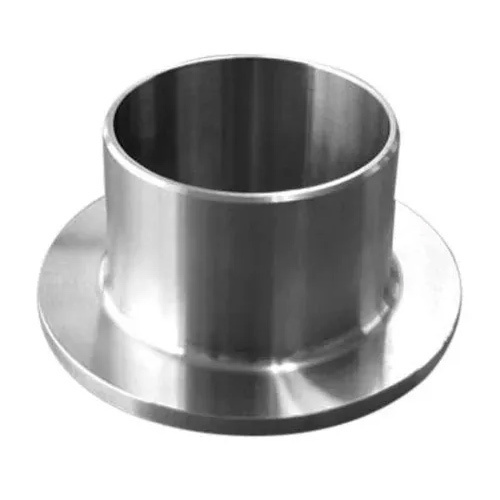

• Application
• other, Chemical, Petrochemical, Marine, Oil & Gas Industries

• Bend Radius
• As per specification

• Color
• Silver / Metallic Gray

• Connection
• Other, Butt Weld

• Connection Type
• Welded

• Diameter
• 12.7 mm - 610 mm

• Flexibility
• Rigid

• Length
• Custom / As per requirement

• Material
• Titanium

• Material Grade
• Grade 2 / Grade 5 Titanium

• Outer Diameter
• 1/2 to 24 (12.7 mm - 610 mm)

• Product Type
• Other, Stub End

• Rated Pressure
• Class 150 / PN16 / As specified

• Sealing Type
• Metal-to-Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM B363 / ASME SB363

• Surface Treatment
• Other, Polished

• Temperature Range
• -253C to 600C

• Tensile Strength
• 345 MPa (Grade 2), 895 MPa (Grade 5)

• Thickness
• 3 mm - 20 mm

• Thread Type
• Not Threaded

• Tolerance
• 0.02 mm

• Usage
• Pipe Fitting / Flange End

• Yield Strength
• 275 MPa (Grade 2), 828 MPa (Grade 5)
