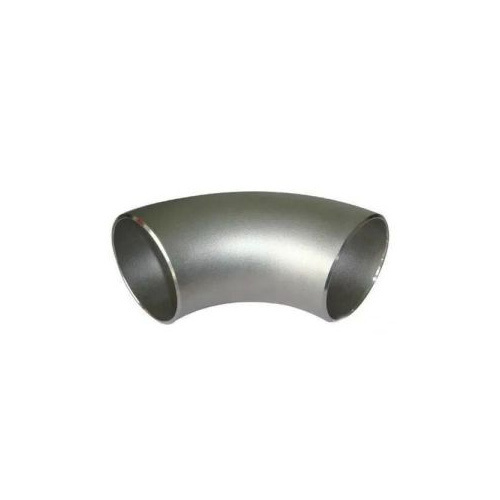

Pipe Fittings Elbow

• Application
• other, Petrochemical, Power Plant, Oil & Gas, Chemical, Shipbuilding, etc.

• Bend Radius
• 1.5D/3D or custom

• Coating Type
• Painted / Black Oxide

• Color
• Black

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• As per requirement

• Flexibility
• Rigid

• Length
• Up to 610 mm

• Material
• Other , Alloy Steel

• Material Grade
• WP5, WP9, WP11, WP22, WP91, etc.

• Outer Diameter
• 1/2 inch to 40 inch (DN15~DN1000)

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• SCH20, SCH40, SCH80, SCH160, XXS

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, ASTM A234 / ASME SA234

• Surface Treatment
• Other, Anti-corrosive coating

• Temperature Range
• -20C to 600C

• Tensile Strength
• 415 MPa min

• Thickness
• 3 mm to 30 mm

• Tolerance
• 1% dimensional accuracy

• Usage
• Pipe fitting in piping systems

• Yield Strength
• 205 MPa min

• Application
• other, Chemical, Petrochemical, Marine, Oil & Gas

• Bend Radius
• 1D, 1.5D, 2D, 3D

• Coating Type
• Anti-corrosive Coating

• Color
• Silver / Metallic Grey

• Connection
• Other, Welded

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 12 mm to 600 mm

• Flexibility
• Rigid

• Length
• Custom as per requirement

• Material
• Other , Monel

• Material Grade
• Monel 400 / Monel K500

• Outer Diameter
• 1/2 inch to 24 inches

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Up to 3000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, ASTM B366 / ASME SB366

• Surface Treatment
• Other, Polished

• Temperature Range
• -29C to 600C

• Tensile Strength
• 517 MPa min

• Thickness
• Up to 15 mm

• Thread Type
• NPT, BSPT (for threaded types)

• Tolerance
• 0.5 mm

• Usage
• Industrial Piping

• Yield Strength
• 172 MPa min

• Application
• other, Petrochemical, Power Generation, Chemical Processing, Aerospace

• Bend Radius
• Standard Radius / Custom

• Coating Type
• Uncoated or Custom Coated

• Color
• Metallic Silver

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld / Socket Weld / Threaded

• Diameter
• 12.7 mm to 609.6 mm

• Flexibility
• Rigid

• Length
• Standard / Custom (as per requirement)

• Material
• Other , Inconel

• Material Grade
• Inconel 600, 625, 800, 825 (as specified)

• Outer Diameter
• 1/2 to 24 (12.7 mm - 609.6 mm)

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Up to 1500 psi or as per standard

• Sealing Type
• Metal-to-metal

• Section Shape
• Round

• Shape
• Other, Elbow (90 or 45)

• Standard
• Other, ASTM B366 / ASME SB366

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -196C to 982C

• Tensile Strength
• Up to 760 MPa (varies with grade)

• Thickness
• 3 mm - 25 mm (as per requirement)

• Thread Type
• NPT / BSPT (for threaded types)

• Tolerance
• 0.5 mm

• Usage
• High temperature and corrosive applications

• Yield Strength
• Up to 345 MPa (varies with grade)

• Application
• other, Pipeline connection/change of direction

• Bend Radius
• Long radius (1.5D) / Short radius (1D)

• Coating Type
• No additional coating / Pickled finish

• Color
• Silver / Metallic

• Connection
• Other, Welded / Seamless

• Connection Type
• Buttweld / Socket Weld

• Diameter
• 12.7 mm - 610 mm

• Flexibility
• Rigid

• Length
• Short Radius / Long Radius (SR/LR as per requirement)

• Material
• Other , Duplex Stainless Steel

• Material Grade
• UNS S31803, S32205, or as specified

• Outer Diameter
• 1/2 to 24 (12.7 mm to 610 mm)

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Up to 6000 PSI (dependent on size/thickness)

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, ASTM A815 / ASME SA815

• Surface Treatment
• Other, Shot Blasting / Pickling

• Temperature Range
• -46C to 300C

• Tensile Strength
• 620 MPa min.

• Thickness
• Sch 10S to Sch 80S (customized)

• Thread Type
• Unthreaded (buttweld/Socket)

• Tolerance
• 0.5 mm

• Usage
• Industrial piping, Chemical plants, Oil & Gas, Marine applications

• Yield Strength
• 450 MPa min.

• Application
• other, Chemical, Petrochemical, Oil & Gas, Marine

• Bend Radius
• 1.5D, 2D or Custom

• Coating Type
• Uncoated

• Color
• Metallic Grey

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld, Socket Weld

• Diameter
• 12.7 mm to 610 mm

• Flexibility
• Rigid

• Length
• Custom/As required

• Material
• Titanium

• Material Grade
• GR.2 / GR.5 / GR.7 etc.

• Outer Diameter
• 1/2 to 24 (12.7 mm to 610 mm)

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• 150# to 2500#

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow Bent

• Standard
• Other, ASTM B363 / ASME SB363

• Surface Treatment
• Other, Pickling, Polished

• Temperature Range
• -196C to 600C

• Tensile Strength
• >= 345 MPa (Grade 2)

• Thickness
• 2 mm to 10 mm

• Thread Type
• N/A (Generally Non-threaded)

• Tolerance
• 0.3 mm

• Usage
• Pipeline Bends / Flow Redirection

• Yield Strength
• >= 275 MPa (Grade 2)

• Application
• other, Chemical, Petrochemical, Pharmaceutical, Gas, Oil Industries

• Bend Radius
• 1D, 1.5D, 2D, or Custom

• Coating Type
• None / Bare Metal

• Color
• Silver

• Connection
• Other, Welded / Seamless

• Connection Type
• Butt Weld, Socket Weld, Threaded

• Diameter
• 12 mm - 610 mm

• Flexibility
• Rigid

• Length
• Standard / Custom Length

• Material
• Other , Hastelloy

• Material Grade
• Hastelloy C276 / C22 / B2 / X / G30

• Outer Diameter
• 1/2 inch to 24 inch

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other, ASTM B366 / ASME SB366

• Surface Treatment
• Other, Polished

• Temperature Range
• -196C to 815C

• Tensile Strength
• 750 MPa (min)

• Thickness
• 2 mm - 20 mm

• Thread Type
• NPT / BSPT (where applicable)

• Tolerance
• 0.03 mm

• Usage
• Industrial Piping / Chemical Transfer

• Yield Strength
• 355 MPa (min)

• Application
• other, Industrial Piping, Plumbing, Chemical Plants, Oil & Gas, Food Processing

• Bend Radius
• R=1D, 1.5D, 2D or custom

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 15 mm - 600 mm

• Flexibility
• Rigid

• Length
• Custom / as per requirement

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L / 321 / 347 / 310S

• Outer Diameter
• 1/2 inch - 24 inch (DN15 - DN600)

• Product Type
• Other, 180 Degree Pipe Elbow

• Rated Pressure
• PN6 - PN40 / SCH 10 - SCH 80

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other, ASTM A403 / ASME SA403

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +800C

• Tensile Strength
• 520 MPa (Min)

• Thickness
• 2 mm - 10 mm (customized)

• Thread Type
• Not Applicable (Welded Joint)

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting / Fluid Transfer

• Yield Strength
• 205 MPa (Min)

• Application
• other, Oil & Gas, Petrochemical, Water Supply, Power Plant

• Bend Radius
• 1D, 1.5D, 2D or as required

• Coating Type
• Black Paint / Varnish

• Color
• Black

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Varies (Nominal 1/2 to 48)

• Flexibility
• Permanent (Rigid)

• Length
• As per Standard / Custom

• Material
• Carbon Steel

• Material Grade
• A234 WPB / Equivalent

• Outer Diameter
• 1/2 to 48 (DN15 to DN1200)

• Product Type
• Other, Pipe Elbow

• Rated Pressure
• Up to 6000 PSI

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, ASTM A234 / ASME B16.9

• Surface Treatment
• Other, Black Painted / Anti-rust Oil

• Temperature Range
• -20C to 425C

• Tensile Strength
• 415 MPa

• Thickness
• Sch 40 / Sch 80 (Customizable)

• Thread Type
• Not Applicable (Buttweld)

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting

• Yield Strength
• 240 MPa

• Application
• other, Oil, Gas, Chemical, Petrochemical, Power Plants

• Bend Radius
• Standard (varies by size and angle)

• Coating Type
• Electro-galvanized / Uncoated

• Color
• Metallic Grey / Silver

• Connection
• Other, Socket Weld

• Connection Type
• Socket Weld

• Diameter
• 1/2 to 4

• Flexibility
• Rigid

• Length
• As per standard (varies based on size)

• Material
• Other , Stainless Steel / Carbon Steel

• Material Grade
• SS304 / SS316 / A105 / F304 / F316

• Outer Diameter
• 1/2 to 4 (13.7 mm to 114.3 mm)

• Product Type
• Other, Socket Weld Elbow

• Rated Pressure
• Class 2000 / 3000 / 6000

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow (90 or 45)

• Standard
• Other, ASTM A182 / A105 / ASME B16.11

• Surface Treatment
• Other, Polished / Shot Blasted

• Temperature Range
• -20C to 450C

• Tensile Strength
• 485 MPa

• Thickness
• Sch 40 / Sch 80 / Sch 160

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting / Fluid Connection

• Yield Strength
• 205 MPa
